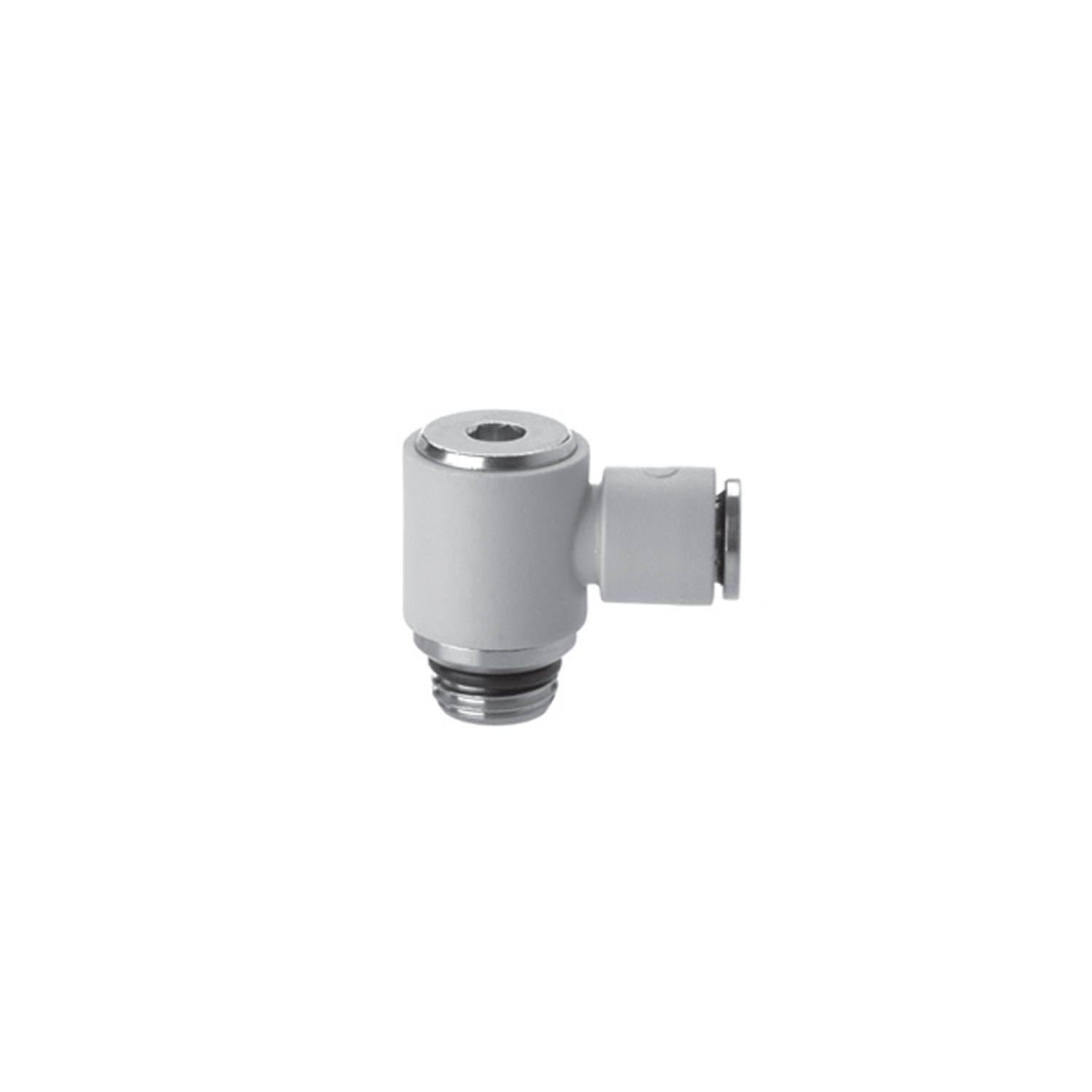

7622 – BSP Swivel Single Banjo Connector

Tube external diameters: 4, 6, 8, 10, 12, 14-46 mm
Fittings threads: metric (M5, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4)

The special collet, which has been designed properly for this series, provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and long service life, also after connections and disconnections of the tube are repeated several times.

The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected.
