The BEKOMAT ® designed for quick and cost-effective servicing

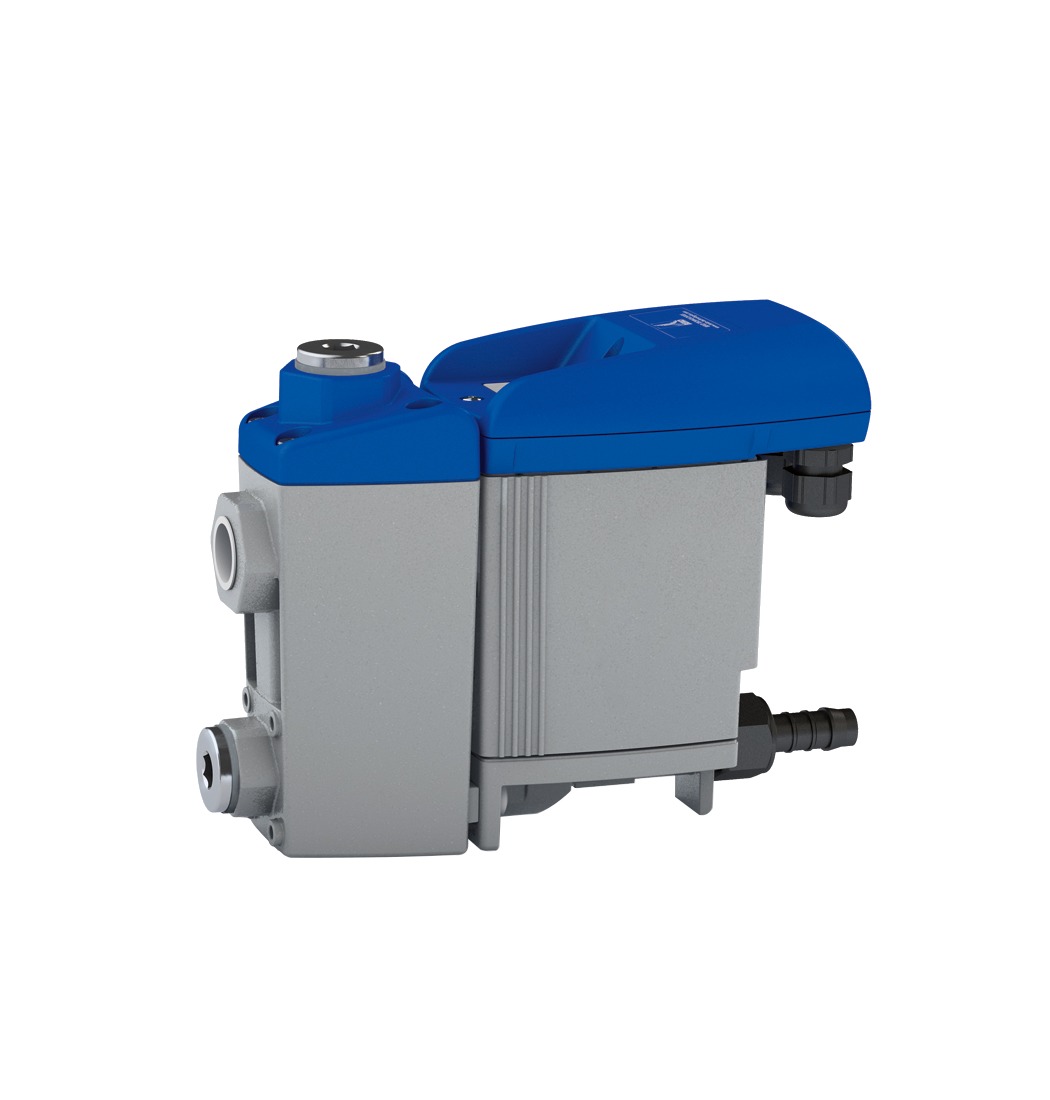

The innovative design of the BEKOMAT® 31U, 32U, 33U and 33U CO models is optimised for easy handling, installation and maintenance. The devices consist of no more than three assemblies joined together with quick-release connectors. Once installed, the control and sensor unit stays in place as only the service unit (including all wear and pressure parts) needs to be exchanged. This sturdy condensate drain is suitable for both oil-contaminated and oil-free, aggressive condensate.
› No loss of compressed air during draining
› Low operating costs
› Outstanding reliability
› Durable and resistant to dirt
› Large valve diameters prevent the formation of emulsions
› No delicate mechanical components
› Suitable for temperatures up to +70 °C
› Easy to install and virtually maintenance-free
› Versatile connection options
› Easy exchange of service unit, even where space is confirmed with even in small areas
› Servicing requires no installation work
› Automated operation and monitoring
› Ready for integration into modern system monitoring installations
› Automatic start of self-cleaning process based on dirt particle load
› Service indicator warns operators in advance when the service unit needs to be replaced
| Max. compressor performance | 3 m³/min | 2.5 m³/min | 1.5 m³/min |
|---|---|
| Max. refrigeration dryer performance | 6 m³/min | 5 m³/min | 3 m³/min |
| Max. filter performance | 30 m³/min | 25 m³/min | 15 m³/min |
| Min./max. operating pressure | 0.8 … 16 bar (gauge) [optional: 1.2 … 16 bar (gauge)] |
| Housing | aluminium + plastic, glass fibre reinforced |
| Diaphragm | AU [optional: FKM] |
| Ambient temperature | +1 °C … +60 °C [optional: +1 °C … +70 °C] |
| Weight (empty) | 0.8 kg |
| Condensate inlet | 1 x G½ (inside) [optional: NPT thread] |
| Condensate discharge | 1 x G¼; hose connector, hose Ø = 10 mm (inside) |
| Operating voltage | 95 … 240 VAC ±10% (50 … 60 Hz) / 100 … 125 VDC ±10% or 24…48 VAC ±10% (50…60 Hz) / 18…72 VDC ±10% |
| Power consumption | P = 0.6…3 VA (W) |
| Protection class | IP 67 |
| Wire cross-section (mains connection) | 0.75 … 2.5 mm² (AWG 14…20) |
| Condensate | oil-contaminated condensate oil-free, aggressive condensate |
| Operating pressure bar (gauge) | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | > 7 bar |
|---|---|---|---|---|---|---|---|
| Max. discharge rate (short-term) l/h | 4.5 | 5.5 | |||||
| Ø discharge rate l/h | 0.51 | 0.63 | |||||
| Max. compressor performance | 6 m³/min | 5 m³/min | 3.5 m³/min |
|---|---|
| Max. refrigeration dryer performance | 12 m³/min | 10 m³/min | 7 m³/min |
| Max. filter performance | 60 m³/min | 50 m³/min | 35 m³/min |
| Min./max. operating pressure | 0.8 … 16 bar (gauge) [optional: 1.2 … 16 bar (gauge)] |
| Housing | aluminium + plastic, glass fibre reinforced |
| Diaphragm | AU [optional: FKM] |
| Ambient temperature | +1 °C … +60 °C [optional: +1 °C … +70 °C] |
| Weight (empty) | 1 kg |
| Condensate inlet | 1 x G½ (inside) [optional: NPT thread] |
| Condensate discharge | 1 x G¼; hose connector, hose Ø = 10 mm (inside) |
| Operating voltage | 95 … 240 VAC ±10% (50 … 60 Hz) / 100 … 125 VDC ±10% or 24 … 48 VAC ±10% (50 … 60 Hz) / 18 … 72 VDC ±10% |
| Power consumption | P = 0.6…3 VA (W) |
| Protection class | IP 67 |
| Wire cross-section (mains connection) | 0.75 … 2.5 mm² (AWG 14…20) |
| Contact load | max. AC 250 V, DC 30 V / 1A; min. DC 5V / 10 mA |
| Condensate | oil-contaminated condensate oil-free, aggressive condensate |
| Operating pressure bar (gauge) | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | > 7 bar |
|---|---|---|---|---|---|---|---|
| Max. discharge rate (short-term) l/h | 10 | ||||||
| Ø discharge rate l/h | 1.14 | ||||||
| BEKOMAT® 33U | BEKOMAT® 33U CO | |
| Max. compressor performance | 12 m³/min | 10 m³/min | 7 m³/min | |
| Max. refrigeration dryer performance | 24 m³/min | 20 m³/min | 14 m³/min | |
| Max. filter performance | 120 m³/min | 100 m³/min | 70 m³/min | |
| Min./max. operating pressure | 0.8 … 16 bar (gauge) [optional: 1.2 … 16 bar (gauge)] | |
| Housing | aluminium + plastic, glass fibre reinforced | Aluminium, hard-coated + plastic, glass fibre reinforced |
| Diaphragm | AU [optional: FKM] | |
| Ambient temperature | +1 °C … +60 °C [optional: +1 °C … +70 °C] | |
| Weight (empty) | 1.65 kg | |
| Condensate inlet | 3 x G½ (inside) [optional: NPT thread] | |
| Condensate discharge | 1 x G½; hose connector Ø = 13mm (inside) | |
| Operating voltage | 95 … 240 VAC ±10% (50 … 60 Hz) / 100 … 125 VDC ±10% or 24 … 48 VAC ±10% (50 … 60 Hz) / 18 … 72 VDC ±10% | |
| Power consumption | P = 0.6…3 VA (W) | |
| Protection class | IP 67 | |
| Wire cross-section (mains connection) | 0.75 … 2.5 mm² (AWG 14 … 20) | |
| Contact load | max. AC 250 V , DC 30 V / 1A; min. DC 5 V / 10 mA | |
| Condensate | oil-contaminated condensate | oil-contaminated condensate oil-free, aggressive condensate |
| Operating pressure bar (gauge) | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | > 7 bar |
|---|---|---|---|---|---|---|---|
| Max. discharge rate (short-term) l/h | 25 | 33 | 40 | 45 | 50 | 60 | |
| Ø discharge rate l/h | 1.59 | 2.06 | 2.51 | 2.85 | 3.17 | 3.8 | |
