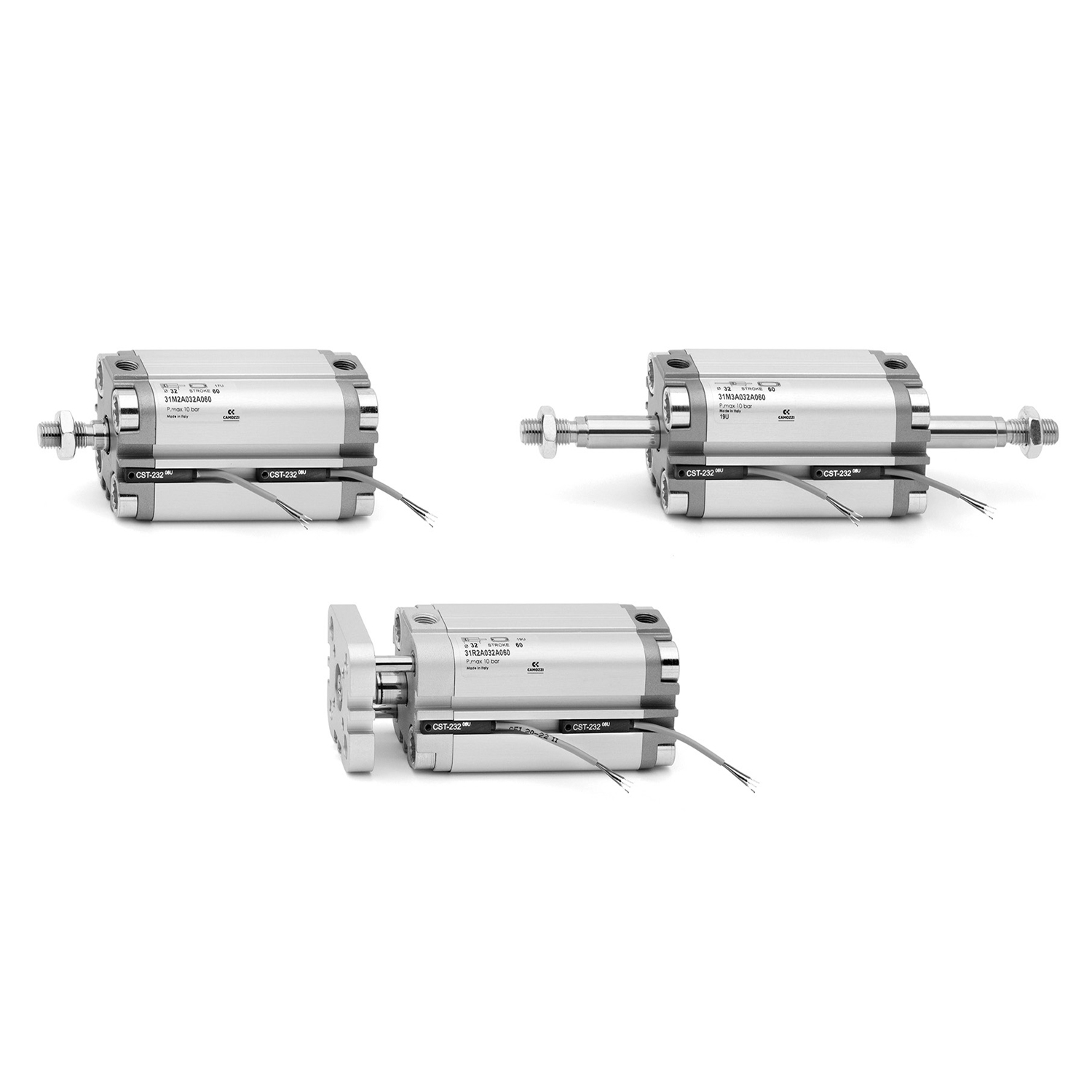

Series 31 – Compact Cylinders

Double and single-acting, double-acting non-rotating, magnetic
ø12, 16, 20, 25 mm
ø 32, 40, 50, 63, 80, 100 mm UNITOP

These cylinders are available in 10 different bore sizes from ø 12 to ø 100. The guides are inserted in the external profile parallel to the sliding axis on three sides. These guides are used to locate the switches that sense the piston position. The construction design of these cylinders provides excellent axis stability. They are available either with a male or female thread.
These cylinders can be supplied in W version for high temperatures (140°C). This last version is not magnetic.
