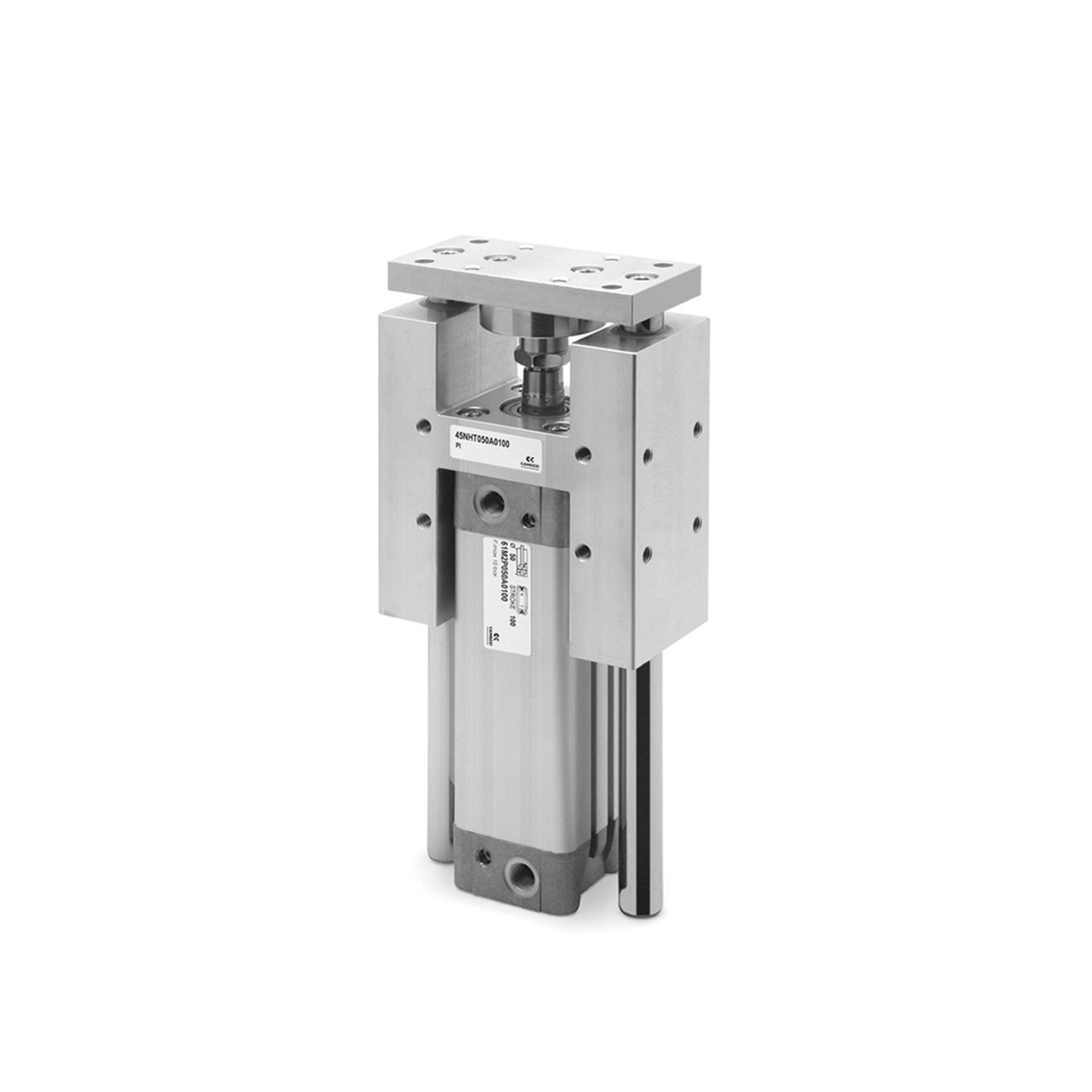

Series 45 – Anti-Rotation Guide Units

Suitable for cylinders:
– DIN/ISO 6432 (ø12, 16, 20, 25 mm)
– ISO 15552, previous DIN/ISO 6431 (ø32, 40, 50, 63, 80, 100 mm)

Series 45 guide units are available in three different models depending on the applicable loads. The UT and HT guides with crawling supports are self lubricating, while HB guides have a ball bush. To ensure the right choice of the loads in relation to the stroke, please refer to the graphs. The shorter the stroke the higher will be the applicable loads.
